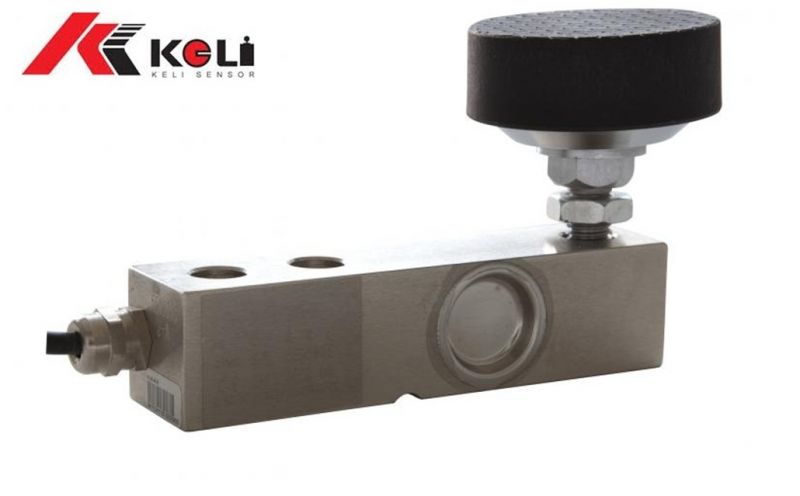

Keli SQB-A & SQB - SS paslanmaz çelik & SQB C3-C4, Loadcell

  1. Ana Sayfa
  2. Keli SQB-A & SQB - SS paslanmaz çelik & SQB C3-C4, Loadcell

Keli SQB-A & SQB - SS paslanmaz çelik & SQB C3-C4, Loadcell
Keli SQB-A & SQB - SS paslanmaz çelik & SQB C3-C4, Loadcell
Keli SQB-A & SQB - SS paslanmaz çelik & SQB C3-C4, Loadcell
Keli SQB-A & SQB - SS paslanmaz çelik & SQB C3-C4, Loadcell
Keli SQB-A & SQB - SS paslanmaz çelik & SQB C3-C4, Loadcell
Keli SQB-A & SQB - SS paslanmaz çelik & SQB C3-C4, Loadcell

Keli SQB-A & SQB - SS paslanmaz çelik & SQB C3-C4, Loadcell

Stok Kodu: 0
Whatsapp Sipariş
Açıklama:

Detaylar



  • excitation, recomended10~12V DC V
  • excitation, max15V DC V
  • rated output3.0∓0.003 (0.5~10t); 2.0∓0.002 (0.25t) mV/V
  • combined errorC2~C5 %FS
  • input resistance400∓10 Ω
  • output resistance352∓10 Ω
  • insulation resistance≥5000 Ω
  • temperature, operating-30~+70 oC
  • cable length3m(0.25~2.5t); 4.2m(3~5t); 5m(7.5~10t) m
  • protection classIP67(0.25~0.3t);IP68(0.5~10t)
  • material madeAlloy Steel
  • safe overload150 %FS
  • ultimate overload200 %FS
  • zero Balance∓1 %FS
  • TCO∓0.02 %F.S/10oC
  • TC SPAN∓0.02 %F.S/10oC

Connection

Exc+ Exc- Sig+ Sig- shield Ref + Ref -
Blue Black White Red Yellow

Ranges

range accuracy class shield class OIML
0.25 t C IP67 YES
0.3 t C IP67 YES
0.5 t C IP68 YES
0.75 t C IP68 YES
1 t C3 IP68 YES
1.5 t C3 IP68 YES
2 t C3 IP68 YES
2.5 t C3 IP68 YES
3 t C3 IP68 YES
5 t C3 IP68 YES
7.5 t - IP68 YES
10 t - IP68 YES
